John hails from Wisconsin. He has taken to modeling the American Freedom Train in HO scale and has graciously agreed to share with us images and notes of his progress. It is still very much a work in progress, so check back every month or so to see what's new. John is basing much of his model on the Lionel AFT cars from the 1970's. Click on any of the images to see a larger version!

  American Freedom Train

John Ripp's update February 26, 2007:

I'm looking at 18" of fresh snow in my backyard and the radio says another 10+ in the next couple of days. Great days to stay inside and model...

Starting on AFT generator car No. 200 for John Finnin.


  American Freedom Train

Starting point is a Rivarossi baggage.

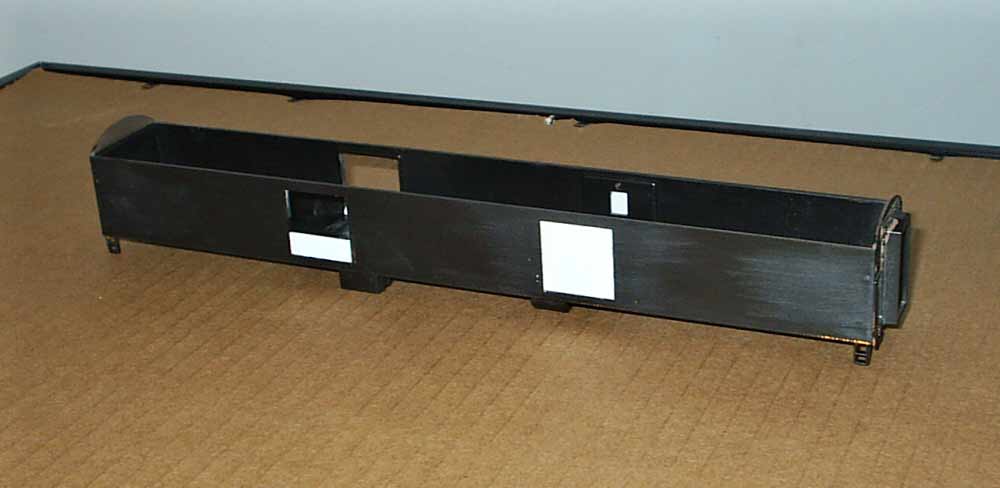

a) Shaved off all cast grabs and unwanted details. b) Stripped off original paint c) Filled in both baggage doors completely on 'A' end. d) Started to form doors and side grills for generator end


  American Freedom Train

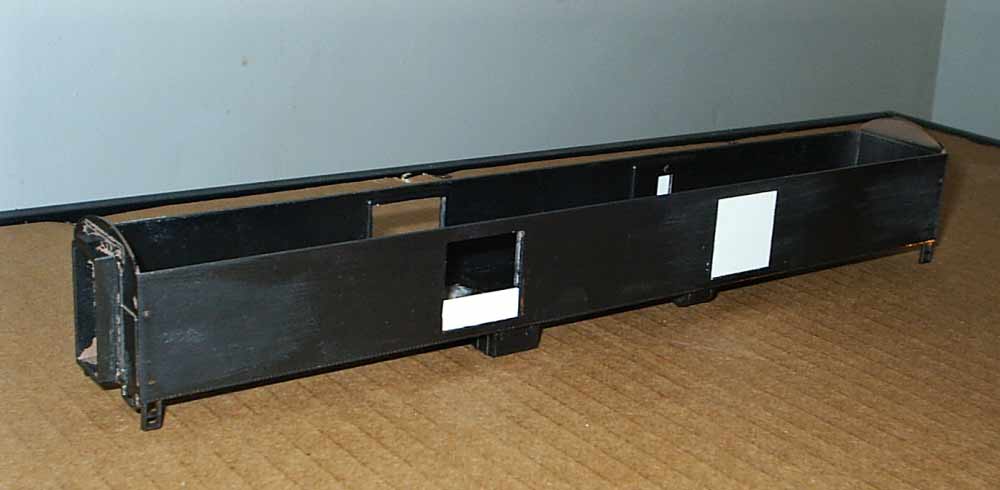

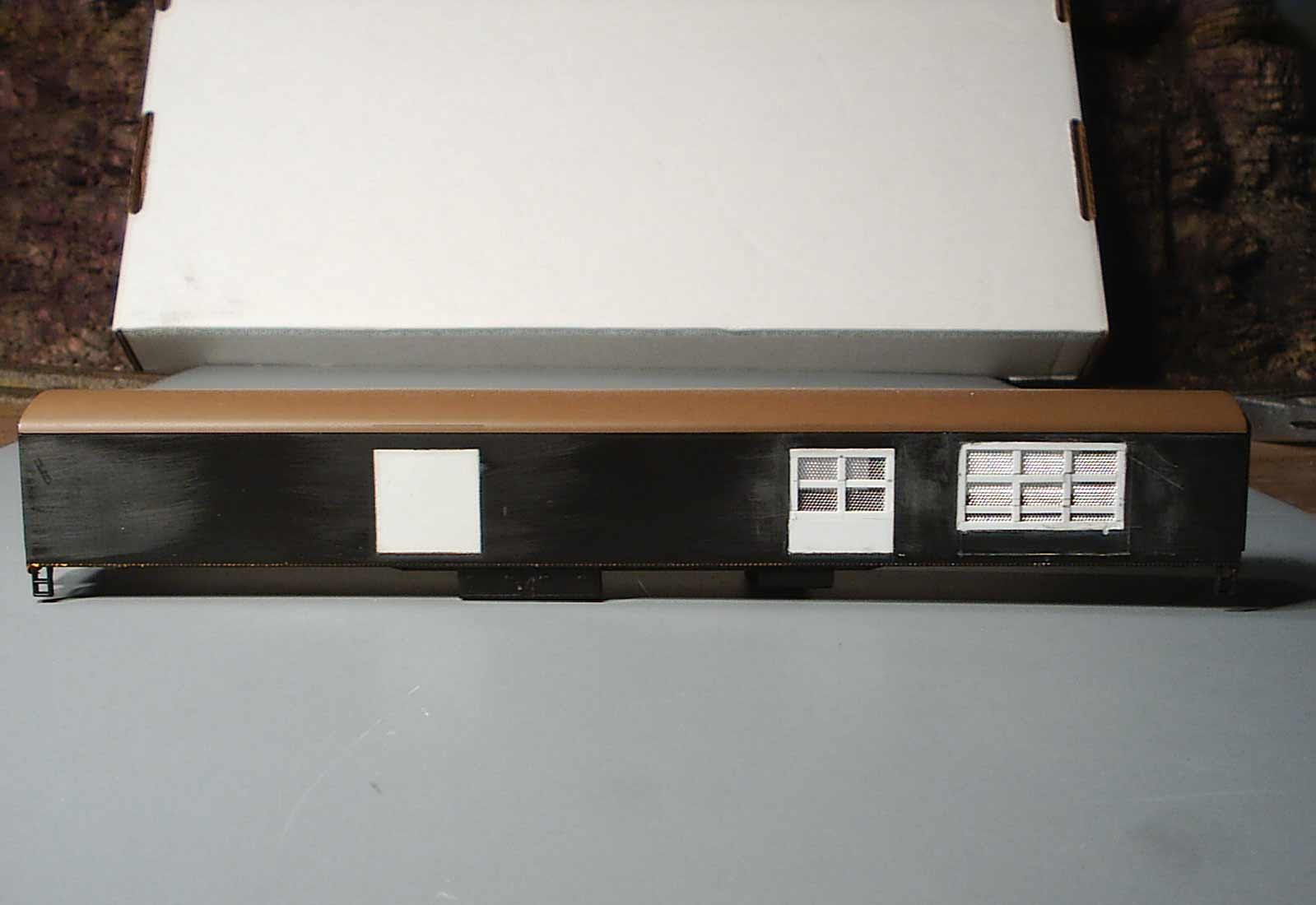

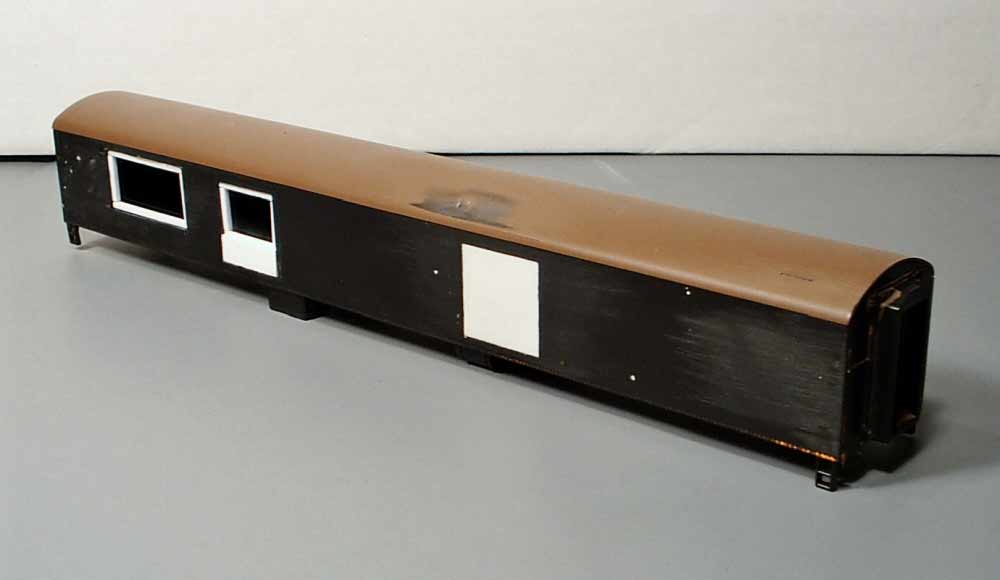

AFT #200 - After cutting out the area for the generator grills.

  American Freedom Train

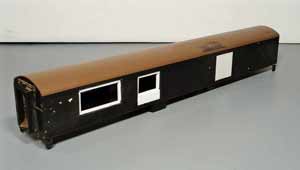

AFT #200 - Bracing added for micro-mesh grills.

  American Freedom Train

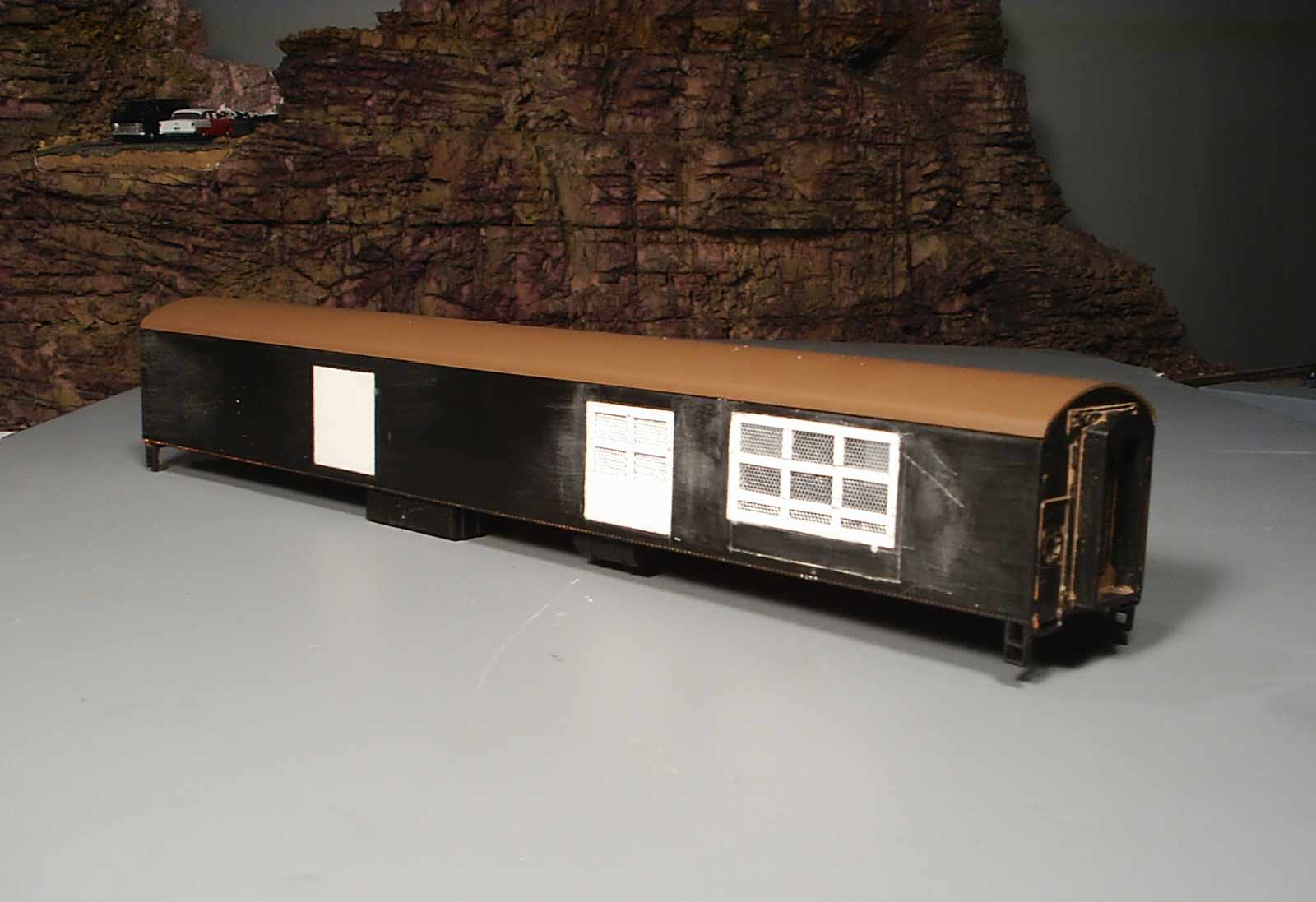

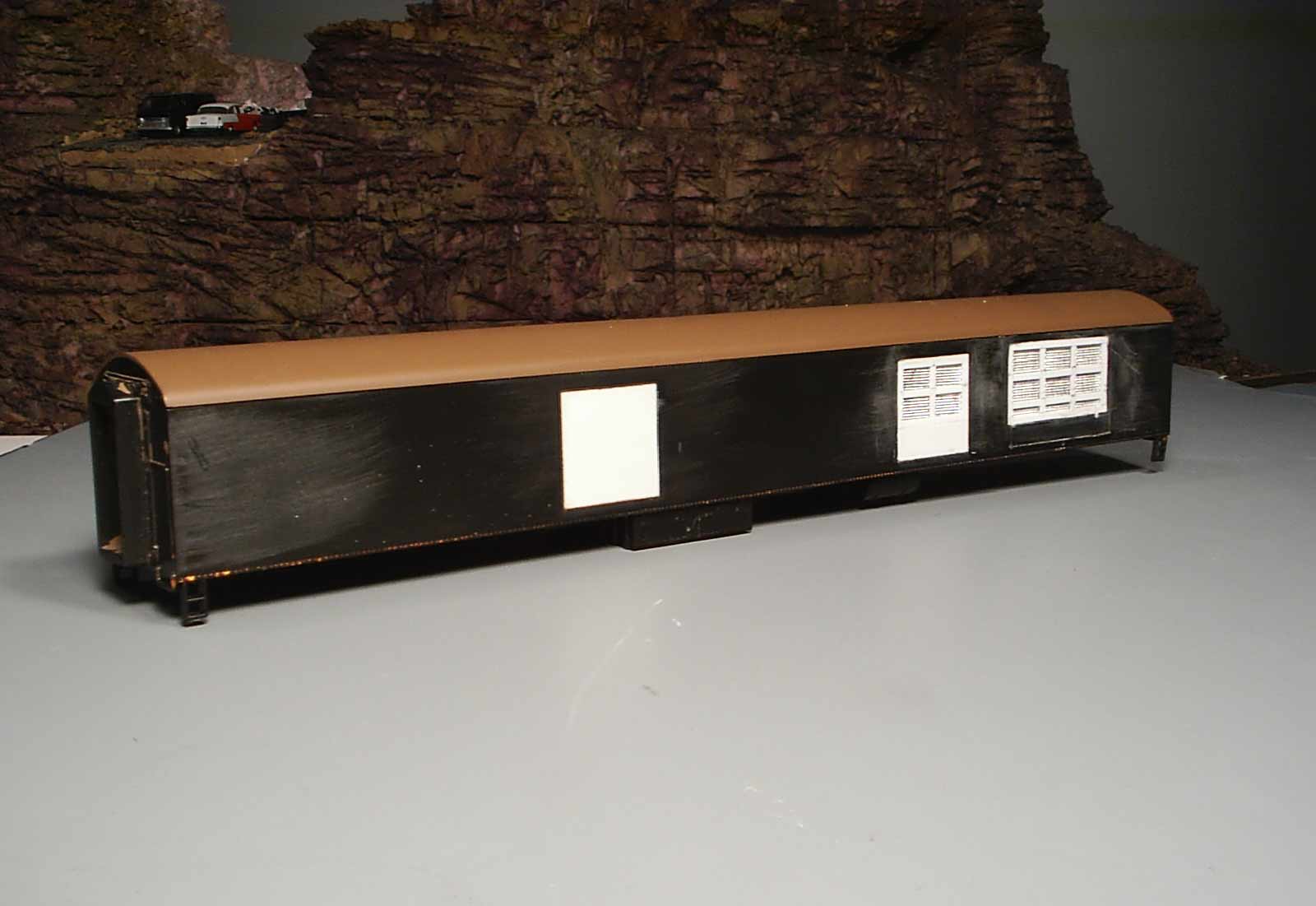

AFT #200 - The car with the grills installed.

  American Freedom Train
AFT #200 - Putty and grills have been sanded down.

  American Freedom Train

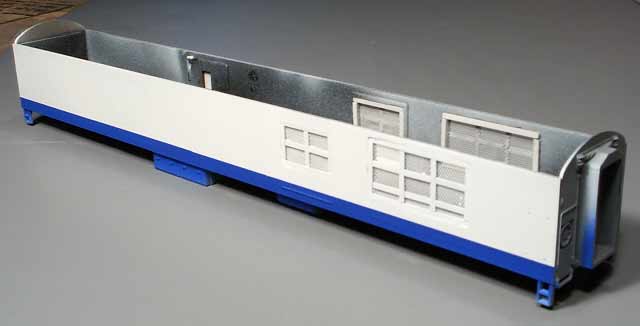

AFT power car #200 - other side.

  American Freedom Train

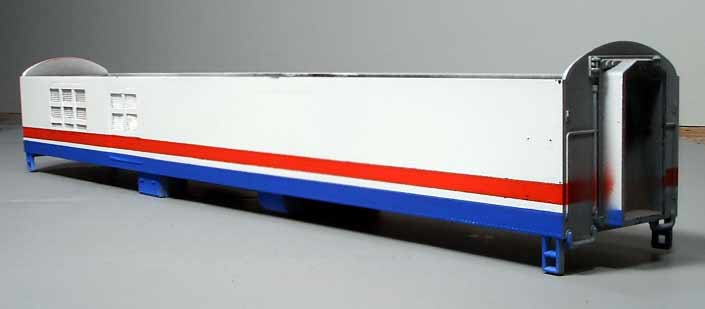

AFT power car #200: Blue stripe airbrushed.

  American Freedom Train

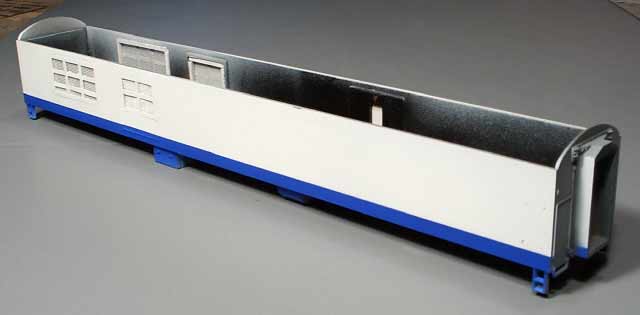

AFT power car #200 - other side.

  American Freedom Train

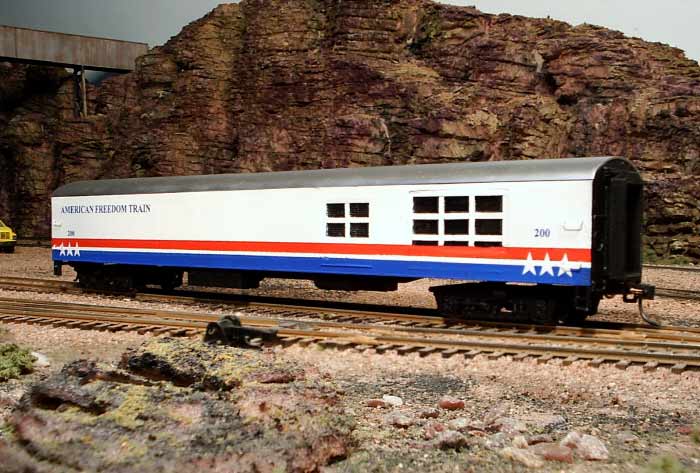

AFT power car #200 - striped. March 2007.

  American Freedom Train
Builder's Photo - AFT power car #200.

  American Freedom Train

John Ripp's update March 5, 2007:

Although they provide a great starting point, the Lionel AFT showcase cars just didn't have the 'right' look to them. Although I redid one and correctly placed the display items in the one at the top of my gallery, I wanted to go back and fix what it was that bothered me: The windows. They just didn't give the car the 'feel' of the prototype. They were, of course, very unique cars indeed...


  American Freedom Train

Here are some views of the process and notes:

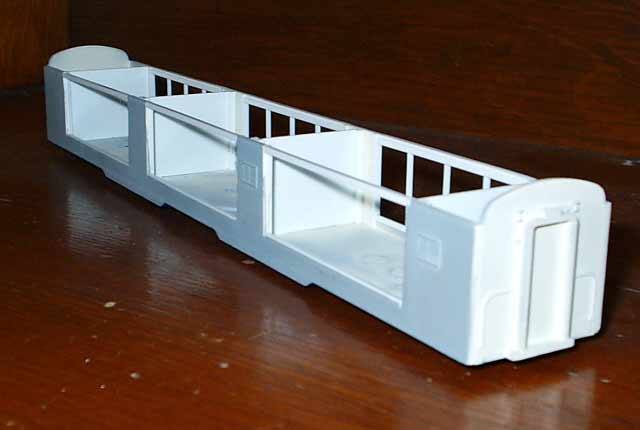

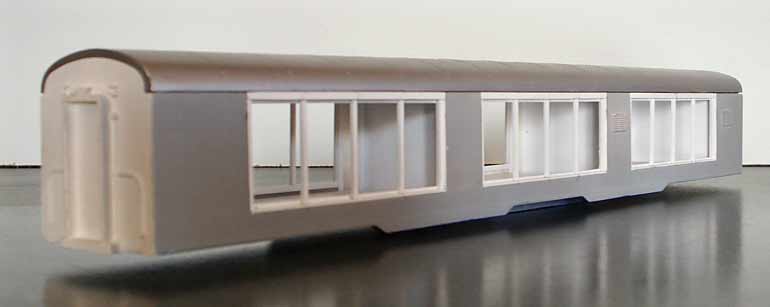

1) The cast car portion over the windows was removed.

2) Windows were framed using various sizes of strip styrene.


  American Freedom Train

3) The cast windows (attached to roof) had to be cut away, leaving the ends for fit to the car. These have weights attached as well.

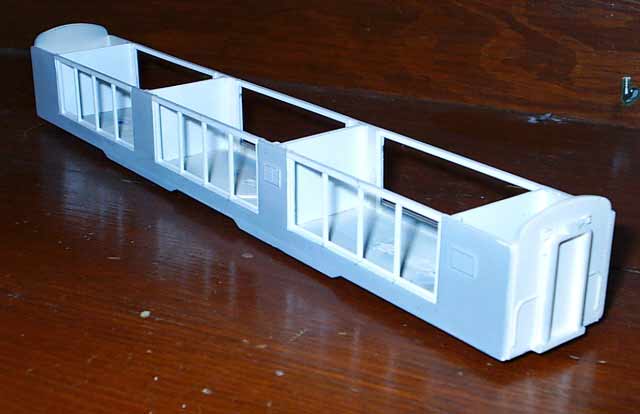

4) Bulkheads creating the separate compartments were fashioned from styrene. As were the display room floors.


  American Freedom Train

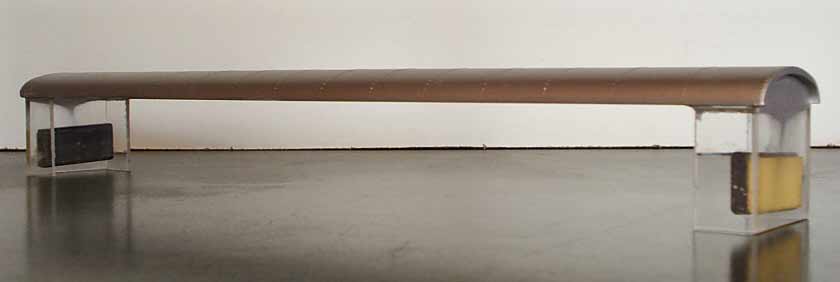

Cast windows cut away and weighted.

  American Freedom Train

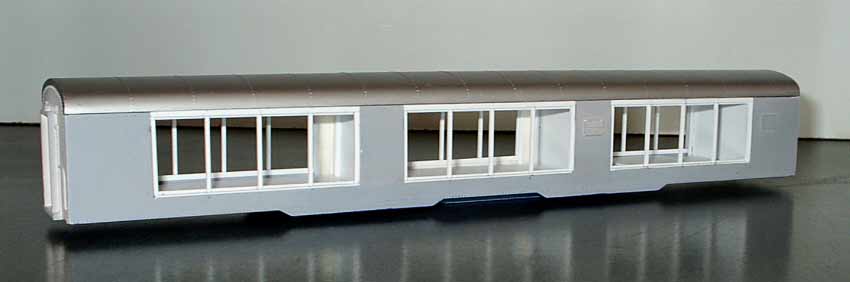

Next it's off to the paint shop.

I feel that doing this creates what the original intended, better viewing of the cars' contents... And the model now more closely reflects the prototype!


  American Freedom Train

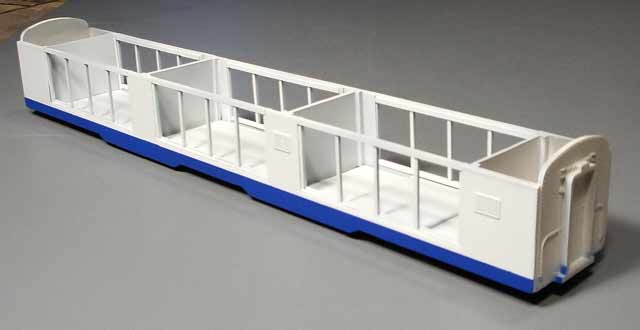

AFT #40: Blue stripe airbrushed.

  American Freedom Train

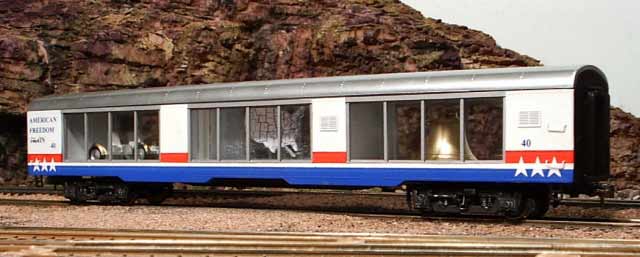

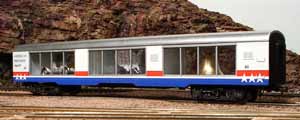

Alrighty then, here's the revamped Showcase No. 40 car.

  American Freedom Train

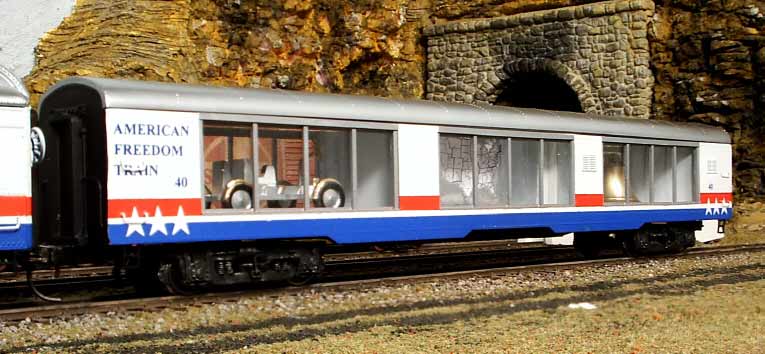

Notes: Body mounted knuckle couplers, 36" metal wheelsets and scale sill steps with wire grabs.

  American Freedom Train

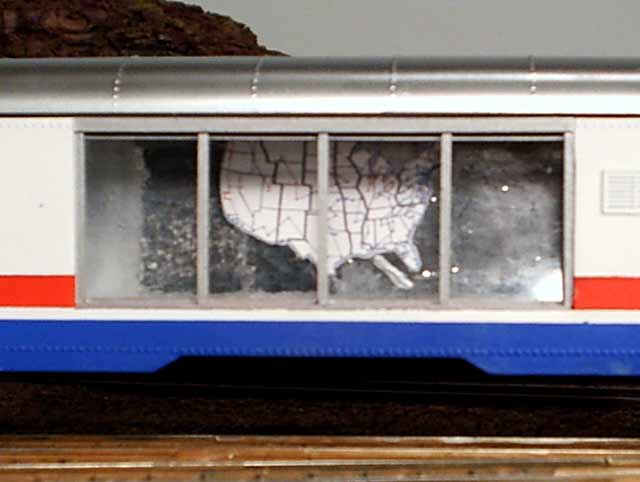

Each window has a one piece 'glass' insert

  American Freedom Train

AFT #203 comes together.

NO ROCK THROWING from the collectors! This car (and the AFT #204) were created by splicing two (2) of the Lionel observation cars together. I had no other use for the five extra ones from the sets I had to acquire to get the other cars, so I made due with them.

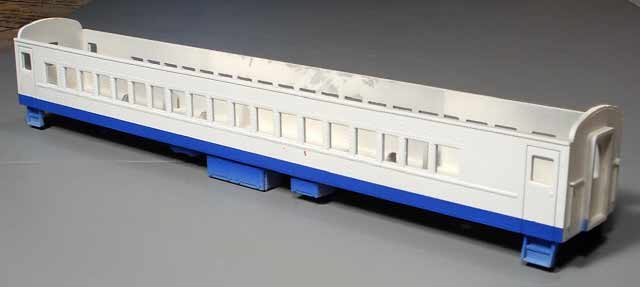

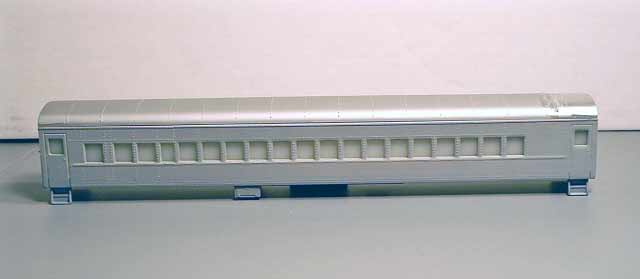

This shows where the cuts were made. Counting from the left, the fourth window from the end is smaller. It is on the right side of this sill that the the two bodies were spliced together. On the opposite end of the car is the roof splice. I like to keep the cut pieces at opposing ends to help hide where the cuts were made.


  American Freedom Train

AFT #203

This time the roof cut is on the right and the car splice occured between the second and third windows from the right. The most important part in doing this type of work is to keep the bodies absolutely square.


  American Freedom Train

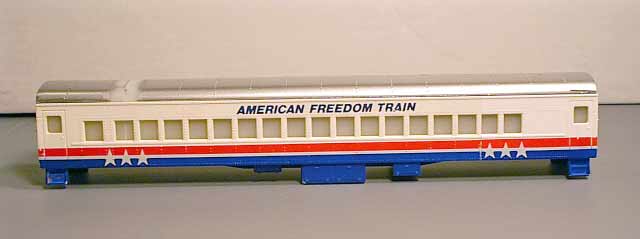

AFT #203 in progress.

  American Freedom Train

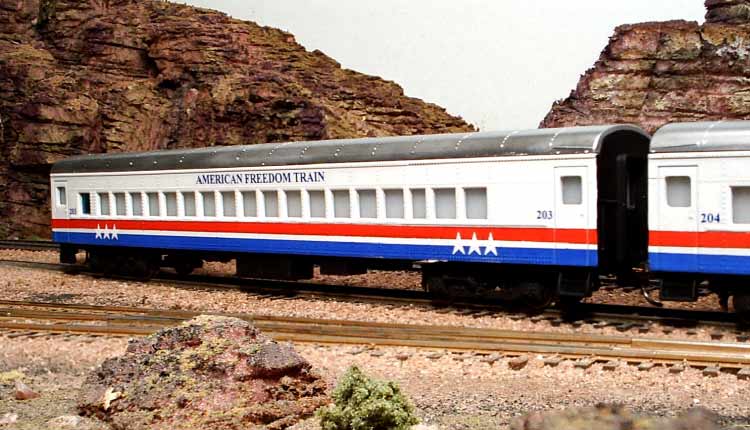

AFT #203 made from cutting up Lionel observation cars, adding knuckle couplers and 36" metal wheels, and custom painted

  American Freedom Train

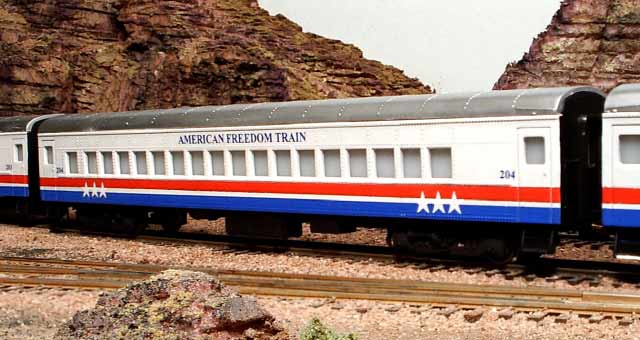

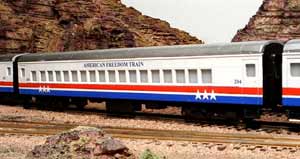

AFT #204.

  American Freedom Train PNWC 76

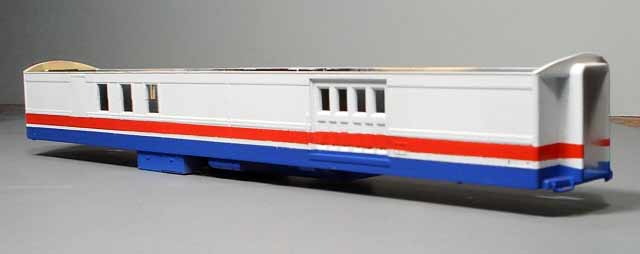

AFT #PNWC76 well under way.

  American Freedom Train PNWC76

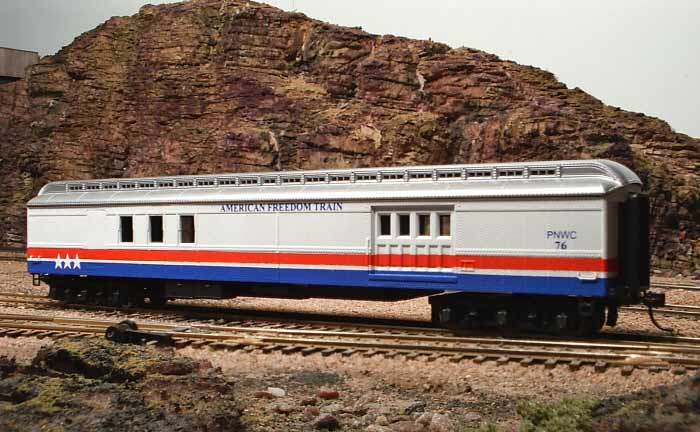

Builder's Photo - AFT tool car #PNWC76

  American Freedom Train

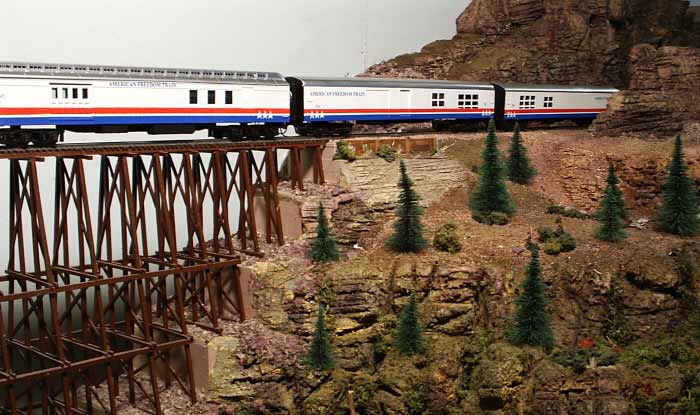

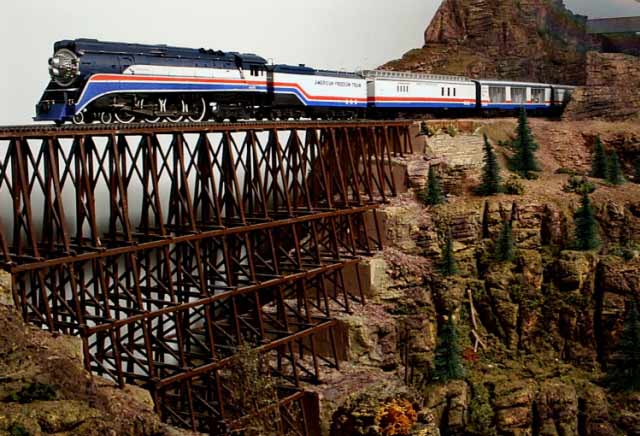

John Ripp's latest commissions for John Finnin --- AFT PNWC76, 111 & 200 ply the rails of the MadCow.

  American Freedom Train
A fine model, coming together piece by piece....
